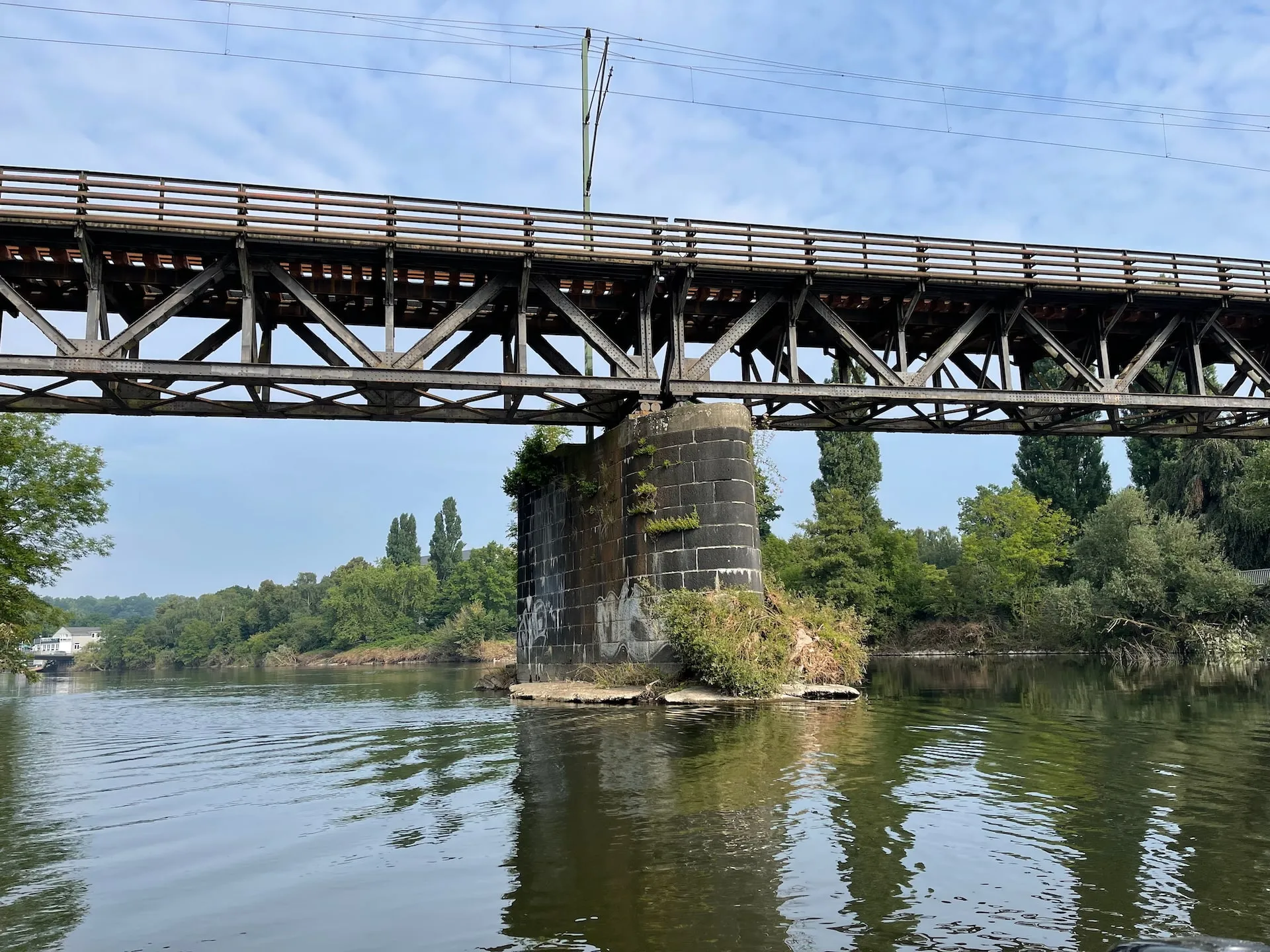

Drone Inspection for Infrastructure – Bridges, Tunnels & Car Parks Without Scaffolding
Kopterflug inspects bridges, tunnels, car parks, retaining walls and traffic structures without scaffolding, without closures and without human entry into hazardous areas – with the Flyability ELIOS 3, DJI M30T and handheld LiDAR. GPS-free, collision-safe, 4K + LiDAR + thermography.
- No scaffolding, no elevated platforms, no closures
- 50–80% cost savings versus conventional access equipment
- DIN 1076-compatible documentation for structure inspectors
What We Inspect in Infrastructure
Bridges, tunnels, car parks and retaining walls – difficult to access, high inspection effort, safety-critical. We inspect all relevant structures without scaffolding, without closures and without human entry into hazardous areas:
Our Services – Inspection Without Scaffolding
- Tunnels, Box Girders & Culverts: GPS-free SLAM navigation in bridge box girders, tunnels and confined culverts – without scaffolding, without closure, without human entry into hazardous atmospheres.
- 4K + LiDAR + Thermography: Visual inspection, 3D cross-section capture for deformation analyses and thermography for moisture ingress and voids in concrete.
- No Scaffolding, No Elevated Platform, No Closure: Drastically reduced costs and minimal traffic disruption – the drone replaces expensive access infrastructure and significantly shortens closure periods.
- DIN 1076-Compatible Documentation: Auditable reports with 4K recordings, LiDAR 3D models and thermography as the basis for structure inspectors and experts per DIN 1076.
Challenges in Infrastructure Inspection
Bridges, tunnels, car parks – high hazard, elaborate access equipment, long closures. Conventional methods are expensive, slow and disruptive. The ELIOS 3 solves this – without scaffolding and without closure.
- Difficult-to-Access Areas Without Expensive Equipment: Bridge soffits, hangers, tunnel vaults – conventionally only reachable with elevated platforms, under-bridge inspection vehicles or climbing teams. The drone flies anywhere – in minutes.
- Traffic Disruptions and Closures: Bridge and tunnel inspections conventionally require lane closures, night work, traffic disruption. The drone minimises or eliminates the need for closures.
- High Costs for Access Infrastructure: Elevated platforms, under-bridge vehicles and scaffolding for bridges and tunnel ceilings cost many times more than the actual inspection. Drone inspection is a fraction of the total cost.
- Safety Risks for Inspectors: Working on elevated platforms over roads, waterways and in tunnels with vehicular traffic is dangerous. The drone takes over the inspection from safe ground level.
- Comprehensive Documentation Difficult: In manual inspections many areas remain only partially accessible. The drone captures completely and systematically – no area remains unchecked.
- Inspection Deadlines per DIN 1076 and BauPrüfVO: Engineering structures must be regularly inspected – main inspection every 6 years, routine inspection every 3 years. The drone significantly accelerates and reduces the cost of these inspection cycles.
- Unplanned Damage Only Discovered Under Live Operation: Cracks in vaults, corrosion on hangers, bearing deformations – conventionally detected late. With the drone, inspect preventively before a small finding becomes an expensive remediation case.
Damage Patterns & Sensor Use by Structure Type
Depending on the structure, we deploy ELIOS 3 (interior/confined areas), DJI M30T (exterior/thermal) or both combined – without scaffolding, without closure.
Bridges & Pipe Bridges
Inspection of substructures, main beams, hangers, bearings and waterproofing. LiDAR captures geometry and deformations. Thermography shows moisture ingress and voids.
- Sensors: Visual, LiDAR, Thermography
- Typical findings: Corrosion on steel beams and hangers, concrete cracks, coating damage, bearing deformations, waterproofing failures
Tunnels & Underpasses
Recording of vault damage, cracks, spalling, joint openings and drainage failures. LiDAR maps the complete tunnel cross-section.
- Sensors: Visual, LiDAR
- Typical findings: Concrete spalling, vault cracks, joint damage, water ingress, efflorescence, structural deformations
Car Parks & Underground Garages
Testing of reinforced concrete decks, columns and walls for cracks, reinforcement corrosion and chloride attack. Thermography shows voids and moisture.
- Sensors: Visual, LiDAR, Thermography
- Typical findings: Carbonation, chloride attack, reinforcement corrosion, cracks, spalling, drainage failures
Retaining Walls & Noise Barriers
Condition assessment of difficult-to-access wall surfaces, joints, drainage openings and connection areas. LiDAR measures deformations and inclinations.
- Sensors: Visual, LiDAR
- Typical findings: Cracks, joint damage, efflorescence, tilting, structural deformations
Railway Bridges & Rail Infrastructure
Inspection of superstructures, cross-beams, bearing areas and overhead line proximity – without track closure. Focus on difficult-to-access areas beneath the track bed.
- Sensors: Visual, LiDAR, Thermography
- Typical findings: Corrosion on steel beams, concrete cracks, bearing problems, coating damage, moisture ingress
Motorway Bridges & Flyovers
Inspection of bridge soffits, cantilevers, parapets and drainage systems – without traffic closure.
- Sensors: Visual, LiDAR, Thermography
- Typical findings: Chloride-induced reinforcement corrosion, concrete spalling, cracks, failed drainage, waterproofing damage
Culverts & Minor Engineering Structures
Inspection of culverts under roads and rail lines – often difficult to access and regularly requiring inspection. For water-bearing culverts, supplemented by ROV.
- Sensors: Visual, LiDAR, ROV (when water-bearing)
- Typical findings: Sediment build-up, blockages, erosion, cracks, scour
Bridge Piers & Foundations Underwater (ROV)
Bridge piers, foundation structures and abutments below water without divers – ROV inspection with 4K camera. Scour, reinforcement corrosion, coating damage and structural damage below the waterline completely documented.
- Sensors: ROV Visual
- Typical findings: Scour, reinforcement corrosion, concrete spalling, coating delamination, sediment build-up, structural deformations
Your Advantages in Infrastructure Inspection with Drones
- No Scaffolding, No Closure: No expensive access infrastructure, no traffic disruption, no night work. The drone flies under bridges, through tunnels and under car park decks.
- Drastically Reduced Costs: Eliminating elevated platforms, under-bridge vehicles and scaffolding saves typically 50–80% compared with conventional access infrastructure.
- Complete 3D Documentation: LiDAR delivers georeferenced 3D point clouds of the complete structure – as a digital basis for maintenance planning and comparative inspections.
- Safe Inspection for Your Personnel: No working on elevated platforms over roads, waterways or in tunnels with vehicle traffic. The drone takes over the hazardous work – your people stay on the ground.
- DIN 1076-Compatible Documentation: Auditable reports for main inspections and routine inspections per DIN 1076 – as the basis for your expert or structure inspectors.
- Comparative Inspections Across Cycles: Georeferenced data enables direct comparison between inspection cycles – damage progression becomes measurable and maintenance plannable.
Inspection Procedure
Step 1: Initial Consultation (Free)
We analyse your structure and advise you free of charge on feasibility, sensors, access point and coordination with road traffic authorities or operators.
Step 2: Scheduling & Quotation
You receive a transparent quotation. Together we plan the timing, any reduced closure periods and the safety concept.
Step 3: On-Site Inspection
We carry out the inspection with ELIOS 3 – usually within a few hours, without elaborate access infrastructure.
Step 4: Evaluation & Inspection Report
You receive a detailed report with 4K recordings, LiDAR 3D models, thermography analyses and systematic findings overview – as the basis for structure inspectors or experts.
Your Contacts for Infrastructure Inspections
Christian Engelke and Dipl.-Ing. Karsten Lehrke – your direct contacts for infrastructure inspection projects.
Since 2017 we have been inspecting engineering structures, bridges, tunnels and car parks – numerous inspections of demanding infrastructure structures with ELIOS 3, LiDAR and thermography. We understand the specific requirements: documentation quality and minimal operational disruption.
We advise without sales pressure – openly and honestly about what makes sense for your structure.
Related Services
- Confined Spaces Inspection – Tunnel interiors, bridge box girders and culverts without human entry.
- Industrial LiDAR Survey – 3D point clouds for geometry, deformation analysis and digital twins.
- Underwater Inspection (ROV) – Bridge piers and foundations below water without divers.
- Industrial Drone Inspection – Overview of all inspection services with ELIOS 3 and complementary systems.
Frequently Asked Questions about Infrastructure Inspection
Can the drone replace a conventional main inspection per DIN 1076?
Not completely, but it is a valuable supplement. The main inspection per DIN 1076 requires qualified structure inspectors and may require contact testing (e.g. crack width measurement). The drone delivers high-quality 4K images and LiDAR 3D data from difficult-to-access areas that serve inspectors as a decision basis – and often replace elaborate access infrastructure. Routine inspections per DIN 1076 can use the drone as the primary recording instrument.
Which bridge types can be inspected?
We inspect steel bridges, concrete bridges, composite bridges and pipe bridges – from simple culverts to large motorway bridges. Particularly suitable: bridges with difficult-to-access soffits, suspension bridges with hangers, and pipe bridges over waterways and roads where scaffolding or elevated platforms would be very costly.
Can the drone fly in tunnels?
Yes – and this is one of the main applications of the ELIOS 3. The drone navigates GPS-independently via SLAM and flies through road tunnels, rail tunnels, pedestrian underpasses and pipe tunnels. LiDAR maps the complete cross-section, 4K documents vault damage, cracks and efflorescence. Deployment at reduced or closed operation.
Does the tunnel need to be closed for the inspection?
This depends on the tunnel type and operator. For road tunnels a partial closure or night inspection is generally required – but significantly shorter than with conventional methods. Service and pedestrian tunnels can often be inspected without closure. We advise on the optimal solution for your specific case.
How does LiDAR help in bridge and tunnel inspection?
LiDAR creates complete 3D point clouds of structure geometries – tunnel cross-sections, bridge beams and wall surfaces. This enables: deformation analysis and deformation measurement, comparison between inspection cycles, detection of geometry changes, and the basis for digital twins and BIM models.
Can thermography be used on bridges and tunnels?
Yes, as a valuable supplement. Thermography shows moisture ingress, voids behind concrete layers and temperature anomalies. On bridges, bearings and waterproofing areas can be thermally assessed. Thermography is an indicative method – it provides indications for further testing but does not replace normative non-destructive contact testing.
What data do we receive after the drone infrastructure inspection?
You receive: 4K recordings of all documented areas with systematic findings capture, LiDAR 3D point clouds for geometry measurement and deformation analyses, thermographic recordings as required, and a structured inspection report as the basis for your structure inspectors or experts.
Can the drone inspect car parks and underground garages?
Yes. Car parks are a typical application: reinforced concrete decks, columns and ramps can be examined without scaffolding. Thermography shows moisture ingress and voids. The drone navigates collision-safely under low ceilings and between vehicles. Particularly useful for regular condition monitoring after remediation work.
What damage is typically found in infrastructure structures?
Typical findings: concrete cracks and spalling, carbonation and chloride attack on reinforced concrete structures, corrosion on steel frames and hangers, coating damage, joint damage and water ingress, reinforcement corrosion (detectable by rust streaks and spalling), and bearing deformations and failures.
Is the drone also suitable for retaining walls and noise barriers?
Yes. Retaining walls and noise barriers often have difficult-to-access areas – high wall surfaces, slopes, connection areas. The drone flies along the wall and documents cracks, joint damage, efflorescence and tilting. LiDAR can measure inclinations and deformations – without scaffolding, without elaborate access equipment.
How long does a drone inspection of infrastructure structures take?
Duration depends on the size and complexity of the structure. A bridge soffit or simple tunnel is typically inspected in 4–8 hours. Car park floors are captured in 2–4 hours depending on size. Larger tunnels or extensive bridge structures are planned in daily stages. We give you a concrete timeframe in the quotation.
Does drone inspection completely replace scaffolding or elevated platforms?
In many cases yes – the drone flies under bridges, through tunnels and under car park decks without scaffolding, elevated platforms or under-bridge inspection vehicles needing to be erected. For contact testing (e.g. hammer sounding or crack width measurement), supplementary manual work may be required. For comprehensive visual documentation and LiDAR survey, the drone is the more cost-effective and safer method.
Can damage be precisely located in drone infrastructure inspection?
Yes. The LiDAR survey delivers georeferenced 3D point clouds – every finding is precisely located in space and can be directly re-found in follow-up inspections. 4K recordings are systematically captured and referenced in the inspection report. This enables precise damage localisation and direct comparison between inspection cycles.
How does drone inspection differ from rope access or industrial climbing?
Rope access and industrial climbers require anchor points, permits and are limited to individual areas. The drone captures large surfaces in a short time – without human entry and without fall risk. While a climber documents a few hundred square metres per day, the drone achieves a multiple of that. For contact-based testing, rope access remains a useful complement, but for comprehensive visual documentation the drone is significantly more efficient.
Can the drone inspect building facades and high-rise facades?
Yes. The DJI Matrice 30T documents facade surfaces with 4K resolution and 200x zoom – even fine cracks, plaster damage and joint leaks are captured from a safe distance. Radiometric thermography reveals thermal bridges, moisture and waterproofing defects in the facade. Scaffolding or aerial platforms are eliminated in most cases.
In what weather conditions can an infrastructure drone inspection take place?
Exterior inspections with the DJI Matrice 30T are possible at wind speeds up to 12 m/s and light rain. The ELIOS 3 flies in sheltered interiors (tunnels, box girders, car parks) regardless of weather. For thermography on facades we recommend dry conditions and minimal solar radiation to obtain meaningful thermal images. We coordinate the deployment date accordingly.
What documentation standards does the inspection report meet?
Our report is aligned with the requirements of DIN 1076 and the RI-EBW-PRÜF for bridge inspections. You receive a systematic findings list with damage classification, georeferenced 4K image evidence, LiDAR 3D models and an overview map of all finding locations. The report is structured so your structural engineers and experts can work directly with it.
Can the drone data be integrated into BIM models?
Yes. The LiDAR point clouds can be imported directly into standard BIM software (Autodesk Revit, Bentley, Trimble). The 3D data serve as the basis for digital twins of bridges, tunnels and buildings. This allows inspection findings to be spatially located, refurbishment plans to be visualised and condition changes to be compared across multiple inspection cycles.
Does drone inspection of infrastructure require a permit?
Generally yes. For deployments on federal highways, railway structures and public infrastructure, permits from the relevant authorities (e.g. road traffic authority, Federal Railway Authority) and potentially aviation permits are required. We hold all necessary operating permits and handle the complete coordination with the authorities – you receive a turnkey deployment.
How safe is drone deployment near busy roads and railway lines?
Safety is our highest priority. The ELIOS 3 flies within its protective cage and is secured against contact with structural elements. For exterior inspections we prepare a safety concept with barriers, safety distances and fallback scenarios. Our pilots are certified under EU drone regulation and have extensive deployment experience at transport infrastructure.
How often should infrastructure assets be inspected by drone?
DIN 1076 mandates a major inspection every 6 years and a simple inspection every 3 years for bridges. For car park decks and underground garages we recommend inspection every 2–5 years depending on loading. In general: the earlier damage is detected, the lower the repair costs. The drone makes more frequent inspection intervals economically viable.
What does a drone inspection of an infrastructure asset cost?
Costs depend on structure size, accessibility and required documentation scope. Typical deployments for individual bridges or tunnel sections start in the low four-figure range. Compared to scaffolding, aerial platform hire or under-bridge units, you typically save 40–70 % on access costs. We provide an individual quote following a brief phone consultation.
